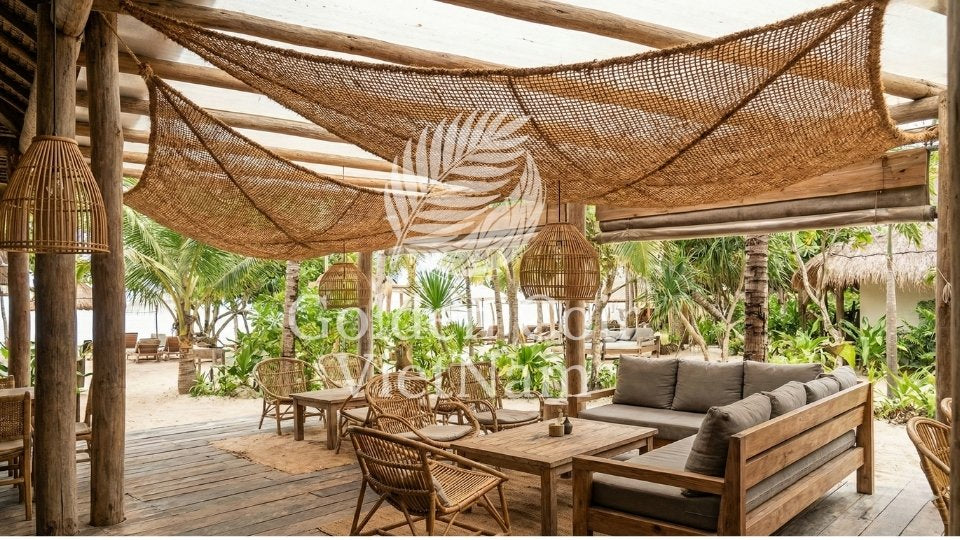

What Is a Shade Sail? Ultimate Guide to Layouts and Overlapping Designs

Creating a functional outdoor environment requires more than just furniture and paving. It requires managing the sun. A shade sail offers a modern, flexible solution that transforms harsh heat into a comfortable living zone. Unlike traditional timber pergolas or solid roofing, these tensioned fabric structures bring dynamic shapes and breathable shade to gardens, pools, and commercial terraces.

At Golden Coir Vietnam, we understand that shade is about protection and airflow. Whether utilizing high-grade synthetic fabrics or exploring natural fiber alternatives, understanding the mechanics of shade sails is essential. This guide breaks down the structural design, layout strategies, and installation principles necessary to build a lasting canopy.

Understanding Shade Sails as a Tensioned Fabric Structure for Outdoor Living Spaces

A shade sail is not simply a piece of cloth tied to four posts. It is a sophisticated piece of tensile architecture designed to perform under stress. The fabric is pulled tight between several anchor points to create a stable, semi-permanent roof. This tension prevents the fabric from flapping in the wind, which causes wear, and ensures water and debris run off rather than pooling in the center.

The defining characteristic of a professional shade sail is its ability to hold a three-dimensional shape. Unlike a flat tarpaulin, a shade sail relies on the tension generated at the corners to stretch the center of the fabric taut. This creates an outdoor living space that feels open and airy, without the heavy visual obstruction of timber or steel beams found in permanent pergolas.

For homeowners and landscape architects, understanding the physics of tension is the first step. The forces applied at the corners can be significant, often measured in hundreds of kilograms. This structural requirement dictates everything from the choice of fabric to the depth of the concrete footings. When designed correctly, these structures provide a UV protection shield that is both functional and architecturally striking.

The Function of Non Linear Edge Curvature and Concave Edges in Design

If you look closely at a high-quality shade sail, you will notice the sides are not straight. They feature concave edges that curve inward towards the center of the sail. This is not just an aesthetic choice; it is a structural necessity for maintaining tension across the entire surface area.

When tension is applied to the corners of a square piece of fabric with straight edges, the middle of the fabric remains loose and sags. By cutting the edges in a concave curve, the tension applied at the corners is transferred directly into the center of the sail. This creates a drum-tight surface that resists wind and prevents the fabric from stretching out of shape over time.

Designers typically calculate this curvature as a percentage of the side length. A deeper curve results in higher tension transfer but slightly less shade coverage. Finding the right balance ensures the canopy remains stable while maximizing the shaded area for your patio or pool deck.

How Perimeter Webbing and Cable Reinforcement Define the Canopy System

The strength of a shade sail lies in its perimeter. The edge of the fabric usually contains a heavy-duty seatbelt-style perimeter webbing or a stainless steel cable running through a sleeve. This reinforcement is critical because the fabric itself cannot withstand the point loads generated at the corners without tearing.

Stainless steel cable systems are preferred for larger commercial sails or areas with high wind loads. The cable is fixed at the corners and allows the fabric to slide slightly along it, distributing stress evenly. Webbing is more common for residential sails and offers excellent durability for smaller spans. Both methods serve to create a rigid frame that the fabric sits within, allowing the turnbuckles to tighten the system without damaging the textile mesh.

Mastering Overlapping Designs and the Hyperbolic Paraboloid for Aesthetic Curb Appeal

One of the major advantages of shade sails is the ability to create dynamic, visual interest through layout. A single flat sail can be functional, but multiple sails allow for overlapping designs that enhance aesthetic curb appeal. By layering sails at different heights, you create not only better sun protection as the sun moves across the sky but also a sculptural element that adds value to the property.

Overlapping requires careful planning to avoid fabric rubbing. A general rule is to maintain a vertical separation of at least 18 inches (450mm) between sails where they overlap. This prevents damage during high winds when the sails may move vertically. This layering effect also allows hot air to escape between the layers, promoting airflow and keeping the area underneath cooler.

Utilizing Triangular Sails for Geometric Symmetry and Dynamic Layering

Triangles are the most popular shape for shade sail layout design because they are inherently stable and easy to tension. A three-point attachment minimizes the risk of wrinkles compared to square or rectangular shapes. By using multiple triangular sails, designers can create complex geometric patterns that offer flexible coverage.

For example, arranging two triangles to form a loose square shape often looks more interesting than a single square sail. This approach also allows you to introduce different colors or distinct mounting heights. The gap between the two triangles prevents the feeling of a closed-in roof, maintaining a connection with the sky while breaking the intensity of direct sunlight.

Creating the Hypar Twist Effect to Enhance Architectural Modernism

The Hyperbolic Paraboloid (Hypar) effect is the gold standard in tension shade design. This is achieved by varying the heights of the attachment points. On a four-point square sail, you attach two diagonally opposite corners high and the other two low. This forces the fabric into a three-dimensional saddle shape.

A Hypar design does more than look dramatic; it significantly improves stability. The twisted shape prevents water from pooling because there are no flat spots. It also creates opposing tension curves that make the fabric rigid against wind uplift. This twist effect transforms a standard shade cloth into a piece of modern art that defines the architectural style of the home.

Strategies for Combining Square and Triangle Shapes for Maximum Coverage

While triangles are stylish, square and rectangular sails provide the most continuous shadow. A strategic design often combines these shapes. You might use a large rectangular sail to cover the main dining table and flank it with smaller triangular sails to cover adjacent walkways or lounging zones.

This "mix and match" approach allows you to navigate difficult anchor points. If you have three good mounting points on a house wall but only one post in the garden, a combination of shapes can utilize those points effectively without requiring expensive new footings. The key is to ensure that the visual lines flow together and that the shade sail layout design covers the target area during the peak heat of the day, usually between 11 AM and 3 PM.

Achieving Thermal Comfort: Natural Fibers vs. Synthetic HDPE

The material you choose determines not just the look, but the "feeling" of the space. While High-Density Polyethylene (HDPE) has long been the conventional standard for breathable shade, the modern architectural trend is shifting towards sustainable, natural alternatives. Unlike the synthetic knit of plastic fabrics, Coir Shade Sails utilize the inherent fibrous structure of coconut husks. This natural weave allows air to pass through freely while creating a sophisticated texture that plastic simply cannot replicate.

When solar radiation hits a solid surface, heat is trapped underneath, creating a stifling greenhouse effect. With breathable materials—especially the coarse weave of Golden Coir—hot air rises through the mesh, and cool air is drawn in from the sides. This process, known as convective cooling, can reduce the temperature beneath the sail by up to 15 degrees. Furthermore, while HDPE creates a flat, artificial shadow, coir produces a "dappled light" effect, mimicking the natural, cooling shade of a tree canopy.

The Difference Between Waterproof Membranes and Permeable Weaves

Homeowners often ask for waterproof shade sails, assuming they are the superior choice. However, waterproof sails act as solid barriers. They catch wind like a ship's sail, requiring expensive, heavy-duty engineering for posts. Worse, they trap heat, turning your patio into an oven on sunny days.

Permeable shade solutions are the superior choice for residential comfort. While standard HDPE allows airflow, it remains a petroleum-based product. Coir Shade Sails offer the perfect balance: they are highly breathable, naturally resistant to decay, and fully biodegradable. They shed water effectively when installed with a steep pitch, but their primary function is to provide a cool, UV-filtering sanctuary. Choosing Coir means choosing a material that breathes with the environment, rather than blocking it out.

Evaluating Material Density and Color Opacity for UV Protection Efficiency

Fabric quality is often measured in Grams per Square Meter (GSM). A higher GSM generally indicates a tighter weave and greater durability. Commercial-grade sails typically range from 320 GSM to 380 GSM. Lighter fabrics (around 180-220 GSM) are available but may stretch or degrade faster under intense UV exposure.

Color also impacts performance. Darker colors (navy, black, charcoal) absorb more heat but generally offer higher UV block ratings (often 95%+) and reduce glare significantly. Lighter colors (white, sand, yellow) reflect heat but may have lower UV protection ratings and show dirt more easily. Choosing the right balance of density and color ensures your sail provides a safe UV protection shield for family and guests.

Establishing Structural Integrity via Robust Anchor Points and Tensioning Mechanisms

A shade sail is under constant load. Wind creates lift and drag forces that pull on the mounting points 24 hours a day. Establishing anchor points that can withstand this stress is the most critical part of the installation. A failure at a mounting point can cause property damage or injury.

Every corner of the sail requires a tensioning device. You cannot simply tie the sail with rope and expect it to stay tight. Over time, fabrics relax and stretch. A mechanical system allows you to re-tension the sail periodically to maintain the drum-tight surface required for stability and drainage.

Selecting Marine Grade Stainless Steel Hardware and Turnbuckles for Durability

For outdoor longevity, 316 Grade Stainless Steel is the standard. This marine-grade alloy resists rust and corrosion, even in coastal environments containing chlorine or salt spray. Key components include:

• Turnbuckle adjustment: The primary tensioning tool. It uses a screw thread to pull the corners tight.
• D-Ring: Sewn into the corner of the sail to connect to the hardware.
• Shackles: Used to link the turnbuckle to the wall plate or eye bolt.

Avoid galvanized hardware found in general hardware stores, as it will rust quickly and stain the fabric. Investing in quality stainless steel ensures the system remains functional and adjustable for years.

Calculating Wind Loads and Pull Forces for Safe Post Installation

Before digging holes, consider wind load calculations. A large 5x5 meter sail acts like a giant kite. In a storm, the pull force on a single post can exceed 500kg. Posts should be made of galvanized steel (usually 100mm diameter or square section) and set deep into concrete footings.

A general rule for a shade sail post installation guide is that one-third of the post length should be buried in the ground. For a post that is 2.4 meters high, you need at least 1.2 meters in the ground, set in a substantial concrete mass. Posts should also lean slightly away from the center of the sail (typically a 5-degree angle) to counteract the bending force applied by the tension.

Evaluating Shade Sails against Permanent Structures like Pergolas and Retractable Awnings

When planning backyard infrastructure, homeowners often weigh shade sails against solid roof pergolas or retractable awnings. While pergolas add property value, they are expensive, require council permits, and are fixed in place. Shade sails offer a distinct advantage in terms of flexibility and aesthetics.

Sails provide a "lightness" that solid structures cannot match. They define a zone without enclosing it, preserving views and airflow. They are also significantly cheaper per square meter of coverage, allowing you to shade large areas like swimming pools or driveways where a solid roof would be impractical or cost-prohibitive.

Comparing Cost Effectiveness and Seasonal Durability of Backyard Infrastructure

The entry cost for a custom shade sail system is typically 30-50% of the cost of a timber pergola. However, durability must be considered. A well-made shade sail lasts 10-15 years, whereas a timber structure might last 20+ years with maintenance. The trade-off is the immediate visual impact and high chlorine resistance of shade fabrics over pools, where timber might rot or steel might rust.

Retractable awnings are excellent for immediate sun control but are notoriously weak in wind. A shade sail is designed to be left up all summer (and often all year), handling winds that would destroy a folding arm awning. This makes sails a more set-and-forget solution for seasonal comfort.

The Benefits of Modular Scalability over Fixed Roofing Solutions

One unique benefit of tension structures is modular scalability. You can start with one sail over a patio and add a second or third sail over the pool or play area later. The designs can be independent or linked via shared posts. This allows a landscape design to evolve over time.

Fixed roofing does not offer this flexibility. Once a pergola is built, extending it is a major construction project. Shade sails allow you to experiment with overlapping designs and expand your shaded footprint as your family grows or your garden matures.

Planning the Layout with Correct Post Height and Pitch for Water Runoff

Water is the enemy of a flat shade sail. If a sail is installed flat, water will pool in the center, stretching the fabric and potentially collapsing the structure. Proper planning of post heights creates the necessary "pitch" or slope to shed water effectively.

As a rule of thumb, allow for a 20-30% height difference between the high and low points. For a sail spanning 5 meters, there should be at least a 1 to 1.5-meter difference in height between the opposing corners. This steep angle forces water to run off quickly and also helps the sail stay cleaner by washing away dust and leaves.

Preventing Pooling and Sagging through Proper Elevation Changes

Using the Hypar (twist) design mentioned earlier is the most effective way to prevent pooling. By having high and low points on alternating corners, you ensure that no part of the fabric is flat. Even breathable HDPE shade sail fabrics can hold water during a torrential downpour if they are flat.

If you must have a flatter design, you need to increase the tension significantly via the turnbuckles. However, rely on geometry (slope) rather than just tension to manage water. It reduces the stress on your hardware and extends the life of the fabric.

Guidelines for Positioning Eye Bolts and Mounting Points on Existing Masonry

Attaching to a house is often necessary, but standard bricks are not designed for pull loads. Never use simple expansion bolts in brickwork for shade sails. Instead, use chemical anchors (Chemset) or bolts that pass through the wall with a backing plate on the inside.

Ideally, mount anchor points to the structural frame of the house, such as the fascia (if reinforced with fascia brackets) or studs. Positioning points high on a wall allows you to angle the sail down towards posts in the garden, creating that essential runoff slope. Always align the mounting point with the direction of the pull to prevent the eye bolt from bending.
