The stability of any outdoor canopy relies entirely on the strength of its foundation. When installing a premium coir shade sail, the fabric is only as effective as the shade sail poles supporting it. These structures act as the backbone of your shaded area. They must withstand significant tension forces that can bend weak pipes or pull shallow footings straight from the earth.
At Golden Coir Vietnam, we understand that whether you are planning a residential DIY backyard setup or a large commercial project, the hardware choice dictates the lifespan of the installation. A shade sail functions like a giant kite in the wind. This guide offers a complete breakdown of selecting high-grade materials, calculating concrete depths, and mastering the tension required to keep your sun shade sail pole system secure and visually stunning.
Choosing High Structural Integrity Galvanized Steel Shade Sail Poles
The primary function of shade sail poles is to resist the immense lateral load generated by the tensioned canopy. Unlike a standard fence post designed for vertical weight, a shade sail pole must endure constant horizontal pulling forces. If the post lacks sufficient rigidity, it will bow inward. This causes the sail to sag, flap, and potentially fail during wind events.
Ensuring structural integrity starts with acknowledging the physics involved. Even a modest shade sail diy project can generate corner pull forces exceeding 330.7 lbs in calm weather. During high winds, this force multiplies exponentially. The post acts as a lever; the higher the attachment point, the greater the leverage on the base. Consequently, selecting a post specifically engineered for these loads is mandatory for safety. While aesthetic choices matter, the ability of the steel to remain rigid under load is the paramount concern for long-term performance.
Understanding Why Schedule 40 Steel Offers Superior Wind Load Capacity
When sourcing metal pipes, you will encounter the term "Schedule 40." This refers to the wall thickness of the pipe relative to its diameter. For Heavy-duty galvanized steel posts for shade sails, Schedule 40 is often considered the minimum standard for residential safety. Thin-walled tubing, like that used for chain-link fences, will buckle or "crimp" instantly under the tension of a turnbuckle.
A Schedule 40 steel pipe provides the necessary Wind load capacity to keep the structure stable. The thick walls resist bending, ensuring the tension stays in the sail rather than dissipating through a flexing pole. For larger sails or commercial applications, engineers may even specify Schedule 80 pipes, which have even thicker walls. Using the correct grade of steel prevents catastrophic failure where the pole snaps at the ground line during a storm.
Benefits of Powder Coating for Aesthetic Appeal and Rust Prevention
While raw galvanized steel is durable, many homeowners prefer a specific color to match their exterior decor. Powder coating is a dry finishing process where polymer resin is electrostatically applied and then cured under heat. This creates a finish that is far tougher than conventional liquid paint. It provides a seamless barrier against moisture and oxygen.
Beyond aesthetics, powder coating adds a second layer of defense against corrosion. It seals the zinc coating of the galvanized steel, significantly extending the life of the sun shade sail pole. This is particularly important in areas with high humidity or industrial pollution. A quality powder coat resists chipping and scratching, ensuring your posts look pristine and remain structurally sound for years.
Comparing Wood Posts Against Steel for Cost Effective DIY Backyard Renovations
The choice of material affects the budget, the installation process, and the final look of your outdoor space. Diy posts for shade sails often utilize timber because it is readily available and easier to cut with standard home tools. Wood offers a warm, natural aesthetic that pairs beautifully with the organic texture of our Cocos nucifera coir sails.
However, steel remains the superior choice for strength-to-weight ratio. A slender steel pole can hold the same load as a massive timber column. While shade sail posts steel options might have a higher upfront cost, they typically require less maintenance over decades. Your decision should balance the rustic charm of wood against the modern, maintenance-free sleekness of steel.
| Feature | Galvanized Steel (Schedule 40) | Pressure Treated Timber (6x6) |
|---|---|---|
| Tensile Strength | Extremely High | Moderate (Requires bulk) |
| Durability | 20+ Years | 10-15 Years |
| Maintenance | Low (Powder coat checks) | High (Staining/Sealing) |
| Cost | Higher | Lower |
| DIY Difficulty | Medium (Heavy to move) | Low (Easy to cut/drill) |
Selecting Pressure Treated Pine 6x6 Inch Timber for Budget Projects
For budget-conscious builds, Best wood posts for DIY shade sail installation are typically pressure-treated pine. You must select timber rated for ground contact (often H5 rating). Standard 4x4 inch posts are generally too weak for anything but the smallest sails; the lateral tension can snap them. Therefore, 6x6 inch posts are the minimum recommended size.
Pressure treatment infuses the wood with preservatives to resist termites and fungal decay. This chemical barrier allows you to concrete the post directly into the ground. When selecting your timber, look for straight grains and minimal knots, as these imperfections can become weak points under the constant pull of the shade fabric.
Managing the Risk of Warping and Rot in Wooden Shade Sail Structure Supports
Wood is a hygroscopic material, meaning it absorbs and releases moisture from the air. This process causes expansion and contraction, leading to warping, twisting, and checking (cracking). A warped sun shade sail post can alter the tension of your sail, causing one corner to sag while over-tightening another.
To manage this, coat the timber with a high-quality oil or exterior stain immediately after installation and re-apply annually. Pay special attention to the top grain (the cut end of the post). Installing a post cap helps prevent water from soaking down into the core of the wood, which is a primary cause of internal rot. Regular inspection ensures you catch soft spots before they compromise the structural integrity.
How Ground Sleeves Facilitate Removable Shade Sail Poles for Seasonal Flexibility
Permanent installations are not always practical, especially in regions with severe winters or strict HOA regulations. Removable shade sail posts offer a versatile solution. By utilizing a ground sleeve system, you can remove the vertical poles during the off-season, leaving only a flush cap at ground level. This reclaims your open space and protects the poles from winter weathering.
This modular sleeved design is also ideal for multi-use spaces. You might want shade for a summer party but an open sky for winter stargazing. The sleeve system essentially acts as a socket buried in concrete, holding the pole securely when needed and releasing it easily when not.
Installing a Socket System for Hurricane Proofing Outdoor Structures
In hurricane-prone areas, the ability to rapidly dismantle your structure is vital. A socket system allows you to remove the poles for sun shade sails entirely, eliminating the risk of wind-blown debris. The socket is a slightly larger pipe set permanently in concrete. The shade pole slides inside this socket.
To prevent the pole from rotating or lifting out, a locking pin or bolt passes through both the sleeve and the pole. It is critical that the sleeve is set perfectly vertical (plumb), as you cannot adjust the angle once the concrete sets. This method is the gold standard for How to install removable shade sail poles in concrete securely.

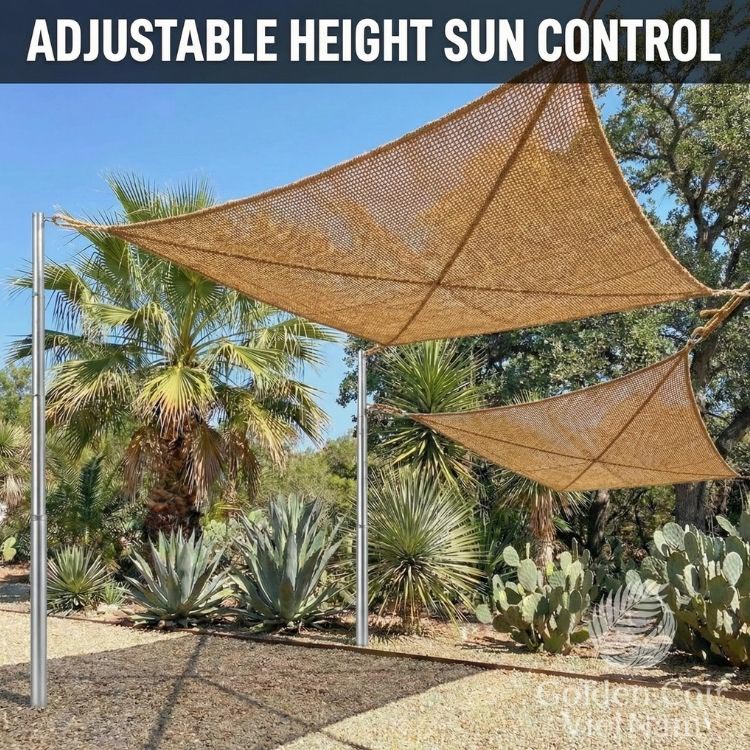

Utilizing Telescopic Adjustable Poles for Versatile Sun Control
The sun moves across the sky, changing the shadow footprint throughout the day. Telescopic adjustable poles for sun sails allow you to raise or lower specific corners of the sail. By dropping the western corners in the late afternoon, you can block the harsh setting sun that often creeps under high canopies.
These poles typically consist of two sliding sections locked by a pin system. While convenient, they often have lower Wind load capacity than solid single-piece poles due to the moving parts. They are best suited for smaller residential sails where adaptability is more important than surviving gale-force winds.
Determining the Correct Diameter and Wall Thickness for Heavy Duty Performance
Guesswork has no place in structural engineering. Choosing the right poles for shade sail involves calculating the forces involved. Two dimensions matter: outer diameter (OD) and wall thickness. A large diameter increases the stiffness of the pole, preventing it from bending like a bow. Wall thickness prevents the metal from buckling or crimping.
For most residential sails up to 25 square meters, a steel pole with a 100mm (4-inch) diameter is standard. However, the wall thickness should be at least 3mm to 4mm. A common error is buying "fence pipe" which may have the diameter but thin 1.6mm walls. This thin steel will fail under the tension required for a professional-looking installation.
Calculating Tensile Strength Requirements Based on Sail Size
Tensile strength refers to the maximum stress a material can withstand while being stretched. In shade sails, we are more concerned with the bending moment. Engineers calculate this by looking at the sail area and the wind speed. A larger surface area acts like a bigger sail on a ship, catching more wind energy.
If you are installing a large commercial sail or using heavy coir fabric, the load requirements increase. You must consult a structural engineer or use charts provided by steel manufacturers. Always oversize your poles. It is far better to have a shade sail pole that is too strong than one that is marginally adequate and fails during a summer storm.
Assessing Lateral Pressure to Prevent Unwanted Pole Deflection
Deflection is the visible bending of the pole under load. While some flexibility is normal, excessive deflection looks unprofessional and loosens the sail. Lateral pressure is constant; even when there is no wind, the turnbuckles exert hundreds of kilograms of pull to keep the fabric taut.
To minimize deflection, increase the diameter of the pole. A 5-inch pole is significantly stiffer than a 4-inch pole of the same wall thickness. If you notice your poles bending inward significantly as you tighten the turnbuckles, you have likely underestimated the required specifications. In severe cases, you may need to install a back-stay cable to anchor the top of the pole to the ground behind it, although this creates a tripping hazard.
Setting Concrete Mix Footings and Correct Angled Installation for Stability
A diy shade sail pole is only as solid as the ground holding it. The most common point of failure is not the steel snapping, but the concrete footing ripping through the soil. The leverage applied by a 3 meters (118.11 inch) high pole is immense. The footing acts as a ballast and an anchor, distributing this force into the surrounding earth.
Soil type plays a massive role. Clay and rock hold well, while sandy or loamy soil requires larger footings. Never rely on simple "fence post" concrete bags for a shade sail. You need structural mass. Ignoring this step is the fastest way to see your hard work collapse.
Digging the Proper Depth Using a Post Hole Digger for Secure Anchoring
The golden rule for Concrete footing depth for sun sail posts is the "one-third rule." At least one-third of the total pole length should be buried underground. If your pole stands 2.4 meters (94.5 inches) above ground, you need 1.2 meters (47.2 inches) in the ground, requiring a 3.6-meter (141.7 inches) total pole length. Use a manual Post hole digger or a powered auger to achieve this depth.
The width of the hole is equally important. It should be roughly 400mm square. This width creates a large surface area pushing against the soil, resisting the leverage of the pole. For sandy soils, you may need to go deeper or wider to achieve the same Anchoring stability.
Pouring Ready Mix Concrete with Rebar Reinforcement for Foundation Strength
Once the hole is dug, position the pole. Crucially, install the pole with a slight "rake" or lean away from the center of the sail—typically 5 to 10 degrees. This Angled installation ensures that when the sail is tensioned and pulls the pole inward, it ends up looking vertical rather than bending over.
Use a high-strength concrete mix. For added security, insert Rebar into the wet concrete around the pole to bind the mass together. Agitate the mix to remove air pockets. Slope the top of the concrete away from the pole to allow water drainage. Allow the Footings to cure for at least 5 to 7 days before attaching the sail; applying tension to "green" concrete can crack the foundation and ruin the alignment.
Attaching Stainless Steel Hardware and Turnbuckles for Optimal Tension
The connection between your post and your coir shade sail is critical. This is the dynamic point where wind loads are transferred. Using substandard hardware is dangerous. We recommend exclusively using marine-grade 316 Stainless steel hardware. It resists rust, maintains strength, and looks professional.
Avoid open hooks which can slip during violent movement. Instead, use closed systems like shackles and D-rings. The hardware must be rated for the load; a small hardware store turnbuckle designed for a clothesline will snap instantly under the load of a shade sail.
Using Eye Bolts and D Ring Connectors for Safe Load Distribution
To attach to the pole, drill through the steel or timber and install a long-shank Eye bolt with a washer and nut on the reverse side. This "through-bolt" method is far superior to screwing a lag bolt into the face, which can be pulled out over time. The washer distributes the load, preventing the nut from pulling through the timber or buckling the steel wall.
On the sail corners, D-ring connectors are sewn into the webbing. Ensure these are heavy gauge steel. The connection sequence usually goes: Pole Eye Bolt -> Turnbuckle -> D-Ring. This chain allows for movement and adjustment while keeping the system secure.
Adjusting Cable Tension to Reduce Sagging in the Tensile Membrane System
A shade sail is a "tensile membrane." It relies on tension to hold its shape and shed water. A loose sail collects water (ponding), stretching the fabric permanently. Turnbuckles are the engine of this tension. They are threaded devices that shorten as you twist them, pulling the sail tight.
Install turnbuckles on at least two corners, preferably all of them for maximum adjustability. Tighten them until the fabric is drum-tight and free of wrinkles. You will need to return 2-3 weeks after installation to re-tighten them, as the fabric and the shade sail posts will settle slightly under the initial load.
Ensuring Long Term Corrosion Resistance in Coastal and Humid Environments
Even the best installation requires care. Corrosion resistance is a battle against the elements, especially if you live near the coast where salt spray accelerates rust. Galvanized steel is self-sacrificing, meaning the zinc coating corrodes before the steel does, but this protection is finite.
Routine checks prevent small issues from becoming structural failures. A well-maintained shade sail diy project can last decades, whereas a neglected one might become unsafe in a few years. Treat your shade structure like any other part of your home requiring periodic upkeep.
Inspecting Galvanized Surfaces and Steel Grades for Salt Spray Protection
Inspect your Galvanized poles regularly. Look for white powdery deposits (zinc oxide) which are normal, but red rust indicates the steel is exposed. If you find rust spots, sand them down and apply a zinc-rich "cold gal" paint immediately. Pay close attention to the base of the pole where it meets the concrete, as this is a prime spot for moisture accumulation.
If you are in a direct oceanfront location, standard galvanizing may not be enough. In these cases, upgrading to stainless steel poles or applying a specialized marine-grade epoxy paint over the galvanizing is recommended for superior protection.
Routine Maintenance Checks for Signs of Metal Fatigue and Wear
Metal fatigue occurs when parts are bent back and forth repeatedly—exactly what happens to shade sail poles in the wind. Inspect the eye bolts and turnbuckles for cracks or deformation. If a turnbuckle looks stretched or bent, replace it immediately.
Listen to your sail. Squeaking sounds usually mean metal rubbing on metal. This friction wears through shackles. Apply a silicone lubricant to threads and moving parts annually to keep them seizing up. By maintaining these anchor points, you ensure the safety of everyone enjoying the shade beneath.
Frequently Asked Questions
What is the best material for shade sail poles?
Galvanized steel is widely considered the best material for shade sail poles due to its high tensile strength and resistance to rot. Schedule 40 steel pipe offers the ideal balance of wind load capacity and cost. While wood is aesthetically pleasing, it requires more maintenance and thicker dimensions to match the strength of steel.
How deep do I need to dig for shade sail posts?
You should follow the "one-third rule." At least one-third of the total pole length needs to be buried in concrete. For a pole standing 2.4m high, you need 1.2m underground. In loose or sandy soil, you may need to dig deeper to ensure proper anchoring stability.
Can I use 4x4 wood posts for a shade sail?
generally, no. A 4x4 inch wood post is typically too flexible for the high lateral loads of a shade sail and may warp or snap during high winds. We recommend using at least 6x6 inch pressure-treated timber or heavy-duty steel posts for safety and longevity.
Why do shade sail poles lean outwards?
Shade sail poles are installed with a 5 to 10-degree outward lean (rake) to counteract the bending force applied when the sail is tensioned. This angled installation ensures that under full load, the poles appear straight and direct the force down into the footing rather than simply bending over.
How do I make my shade sail poles removable?
You can make poles removable by installing a ground sleeve or socket system into the concrete footing. The main pole slides into this sleeve and is secured with a locking bolt. This allows you to remove the vertical posts during winter or storms for protection.
