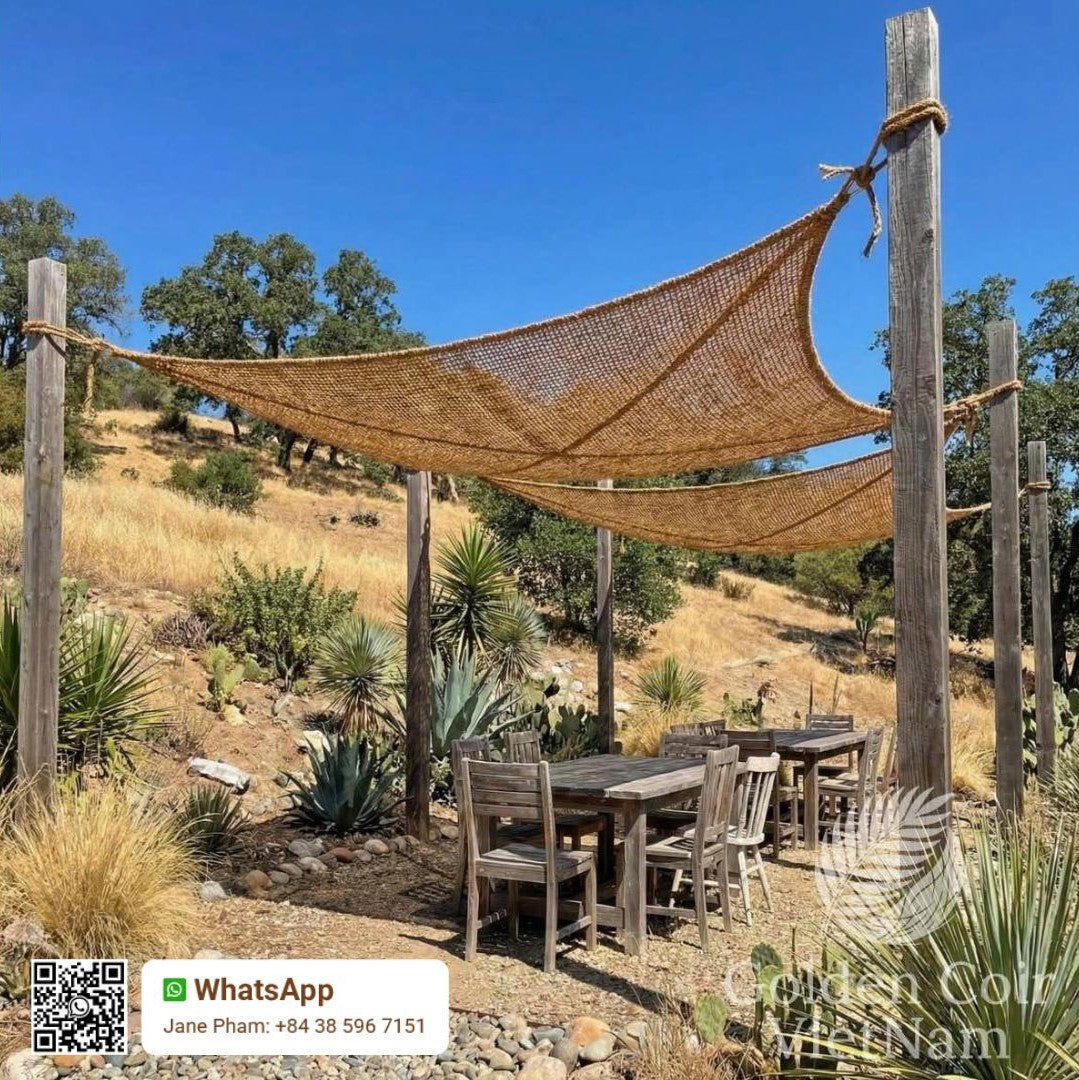

How to Install a Shade Sail The Ultimate DIY Guide for Backyards

Transforming your outdoor space with a canopy is a rewarding project that combines aesthetic appeal with functional UV protection. At Golden Coir Vietnam, we understand that whether you are using our natural coco shade sail products or standard synthetic fabrics, the longevity of the structure depends entirely on proper assembly. Mastering shade sail installation ensures your canopy withstands wind loads and drains water effectively, preventing the sagging that plagues poorly executed projects.

This comprehensive guide details how to put up a shade sail from the ground up. We will cover calculating tension, mixing concrete for robust footings, and selecting the right marine-grade hardware. By following these professional steps, you will create a tensile structure that is safe, durable, and visually striking.

Planning Your Backyard Layout and Identifying Structural Mounting Points

Success in shade sail installation begins long before you dig the first hole. A successful layout must balance the path of the sun with the structural limitations of your backyard. The goal is to create a tensile structure that stays taut; this requires substantial pulling force at each corner. You must identify existing structures, such as house fascia, brick walls, or established trees, that can serve as mounting points, though dedicated posts are often safer and more reliable.

When visualizing the layout, consider the "Hyperbolic Paraboloid" effect. This design principle involves mounting corners at varying heights to twist the fabric. A twisted sail is far more stable in the wind than a flat, horizontal one, which can catch the wind like a parachute. By planning for diagonal high and low points, you reduce wind load and prevent water from pooling in the center, a crucial aspect of how to install shade sails correctly.

Calculating Dimensions and Allowing Space for Tensioning Hardware

One of the most common rookie mistakes when learning how to put up a shade sail is measuring the space and ordering a sail of the exact same size. This results in a sail that cannot be tensioned because the corners touch the posts. You must deduct space for the shade sail hardware kit, specifically the turnbuckles and D-rings. A general rule is to allow a gap of approximately 10% of the sail's span at each corner.

For example, if the distance between two posts is 5 meters, the side of your sail should be roughly 4.5 to 4.6 meters. This gap accommodates the turnbuckles and extension chains required to pull the fabric tight. Without this buffer zone, your sail will remain loose and floppy, significantly reducing its lifespan and aesthetic appeal. Always measure from the planned anchor points (eye bolts) rather than the base of the posts.

While standard HDPE requires 'drum-tight' tension, our Natural Coir Sails offer a unique, rustic aesthetic that allows for a slightly more relaxed fit. However, due to the weight of natural fibers when wet, ensuring your posts are robust (as described in section 3) is even more critical for Coir than for synthetic fabrics.

Locating Underground Utilities Before Digging Post Footings

Before you break ground for your galvanized steel posts, safety dictates that you must locate underground utilities. Hitting a gas line, water pipe, or electrical conduit is dangerous and expensive. In the United States, dialing 811 serves as a free service to mark underground lines. Planning your post locations around these utilities is non-negotiable.

Once you have identified safe digging zones, mark the post locations with spray paint. Remember that large footings are required for stability, often extending 400mm to 500mm wide. If a utility line runs close to your ideal mounting point, you may need to offset the post and use a longer chain or wire to connect to the sail corner. This careful preparation prevents mid-project disasters and ensures a smooth installation process.

Selecting the Correct High Density Polyethylene Fabric and Stainless Steel Kit

The material quality of your sail defines the comfort of your outdoor area. While we at Golden Coir Vietnam specialize in sustainable coir shade sail options that offer a natural aesthetic, the market predominantly features HDPE High-Density Polyethylene fabric. High-quality HDPE is knitted, not woven, allowing air to pass through while blocking harmful rays. This breathability keeps the area underneath cool and reduces the wind load on your posts.

Equally important is the hardware. You should avoid standard zinc-plated hardware found in general hardware stores, as it will rust quickly outdoors. Instead, insist on a 316 marine grade stainless steel kit. This alloy contains molybdenum, which provides superior corrosion resistance against rain and salt air, ensuring your turnbuckles and pad eyes remain functional and stain-free for years.

Understanding UV Block Percentage and Breathability Factors

When choosing a fabric, the UV block percentage is a critical metric. High-quality sails offer between 90% and 98% UV protection, significantly reducing the risk of sunburn. However, a higher UV block often means a tighter knit, which can reduce air circulation. You need to balance protection with breathability.

For hot climates, a fabric with slightly lower density allows hot air to rise through the sail rather than getting trapped underneath. Our natural coco shade sail products excel here, providing dappled shade with superior airflow. If you opt for synthetic HDPE, check the grams per square meter (GSM); a rating of 340 GSM typically indicates a commercial-grade fabric that will not tear or degrade rapidly under the sun's intense UV radiation.

Choosing Between Marine Grade Turnbuckles and Snap Hooks

Your connection hardware dictates how easy it is to tension the sail. A shade sail hardware kit usually includes turnbuckles, snap hooks, and D-shackles. Turnbuckles are essential for at least two corners of a triangular sail or three corners of a square sail. They feature a threaded mechanism that allows you to crank the sail tight, applying the necessary tension to smooth out wrinkles.

Snap hooks (carabiners) are useful for quick release but do not offer tensioning capability. Use snap hooks only on corners that do not require adjustment, or in conjunction with a turnbuckle for easy removal during storms. Never rely solely on snap hooks for all corners, as you will lack the mechanical advantage needed to pull the structure taut.

Installing Galvanized Steel Posts in Concrete and Securing Wall Anchors

The foundation is the most critical aspect of installing shade sail structures. The horizontal force exerted by a sail in the wind is massive, capable of bending weak poles or pulling shallow footings out of the ground. Galvanized steel posts are the industry standard due to their rigidity and rust resistance. We recommend posts with a minimum diameter of 100mm and a wall thickness of 3mm to 4mm to prevent buckling.

If you prefer a softer look or are working on a deck, shade sail installation on wood deck posts is possible but requires reinforcing. Wood posts must be at least 150mm x 150mm (6x6 inches) and bolted through the deck joists, not just screwed to the surface boards. Without this sub-structure reinforcement, the leverage of the post will rip the decking boards loose.

Mixing Concrete for Stability and Determining Footing Depth

Knowing how to install shade sail posts in concrete correctly prevents leaning towers later. The footing depth should be at least one-third the length of the post. For a 3-meter high post, you need 1 meter buried in the ground. The hole should be roughly 400mm square. In soft or sandy soil, increase these dimensions to create a heavier ballast.

Use a high-strength concrete mix for post footings. A standard ratio is 1 part cement, 2 parts sand, and 3 parts aggregate (gravel). Mix with enough water to make it workable but not soupy. When pouring, slope the concrete at the top away from the post to allow water runoff. Lean the post roughly 5 to 10 degrees away from the center of the sail. This backward rake compensates for the bending that occurs under tension, making the post appear straight when the sail is tightened.

Attaching Pad Eyes and Heavy Duty Brackets to Brick Surfaces

For step-by-step DIY shade sail mounting on brick walls, caution is required. Brick veneer is not structural and cannot handle the pull of a shade sail. You must anchor into the solid structure behind the brick or use a chemically set anchor system if the brickwork is double-layered and solid. Standard plastic wall plugs are insufficient and will pull out.

Use pad eyes attached with expansion bolts (Dynabolts) or chemical threaded studs. Ideally, use a diamond-shaped pad eye with four screw holes to spread the load. If mounting to a fascia board, you must install a fascia support bracket that connects the fascia to the internal roof rafters; otherwise, the tension will rip the fascia board off the house.

Connecting the Shade Sail Corners Using Turnbuckles and Snap Hooks

Once the concrete has cured (allow at least 48-72 hours), you can begin hanging shade sails. Lay the sail out on the ground to orient the corners correctly. Connect your chosen hardware to the corners of the sail first. This usually involves attaching a turnbuckle to the sail's D-ring using a D-shackle or directly hooking it on if the design permits.

Lift the sail and connect each corner to its corresponding post or wall mount. The turnbuckles should be fully extended (open) to give you maximum reach. If the sail is still too far from the post, use a stainless steel chain or a strong perimeter wire extension to bridge the gap. Do not over-tighten yet; simply get all corners attached safely.

Orienting the Curved Perimeter Edges for Even Stress Distribution

High-quality shade sails feature curved perimeter edges. This catenary curve is essential for the physics of the sail. As you pull the corners, the curve flattens slightly, distributing the tension into the center of the fabric. Without these curves, the center would sag while the edges remained tight.

Ensure the sail is oriented so these curves are unobstructed. The perimeter wire or webbing sewn into the edge usually contains a stainless steel cable. This cable carries the load, not the fabric itself. Check that the fabric is not twisted at the attachment points and that the "top" side (usually smoother or treated for UV) is facing the sun.

Linking the D Ring to the Anchor Point Safely

The connection point between the sail's D-ring corner reinforcements and the post is the weakest link if done poorly. Ensure that the "D" ring is not twisted. When using a D-shackle, the pin should be tightened with pliers. For added security, some installers use "mousing" wire (thin wire wrapped around the pin eye) to prevent the pin from vibrating loose over time.

If you are using a coir shade sail, the corner reinforcement might be a heavy-duty rope loop rather than a metal ring. In this case, use a smooth shackle to prevent chafing the natural fibers. The connection needs to articulate freely; as the sail moves in the wind, the hardware must pivot without grinding.

Applying Proper Tension to Achieve the Hyperbolic Paraboloid Twist Design

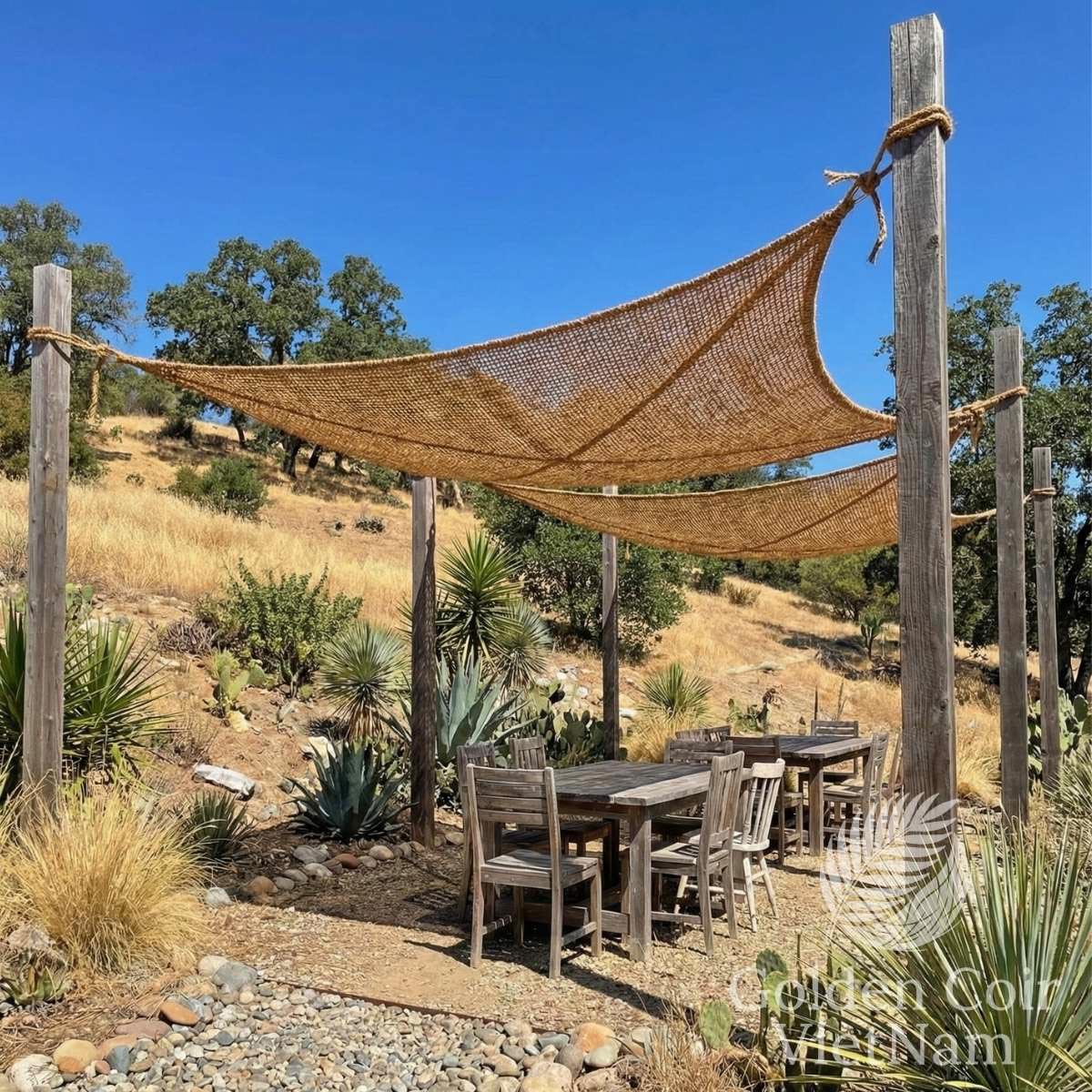

The visual signature of a professional installation is the "Hypar" or hyperbolic paraboloid shape. This is achieved by mounting two diagonal corners high and the opposing two corners low. This twist prevents the fabric from flapping and allows it to slice through the wind. To achieve this, you need to apply significant force.

Start calculating the correct tension for a triangular shade sail or square sail by tightening the turnbuckles evenly. Move from corner to corner, doing a few turns on each. Do not fully tighten one corner while the others are loose. You are aiming for "drum tight" tension. The fabric should have no wrinkles, and you should not be able to easily pinch a fold in the center.

Tightening Hardware to Eliminate Sagging and Flapping in High Winds

Sagging is the enemy. A sagging sail collects water and flaps violently, which destroys the HDPE High-Density Polyethylene fibers. Continue tightening the turnbuckles until the perimeter wire is rigid. You may be surprised by how much tension is required—often 30kg to 50kg of pull force per corner.

If you run out of thread on the turnbuckle and the sail is still loose, you need to shorten the extension chain or wire. This is why having adjustable chain links is vital. A properly tensioned sail will be quiet in the wind; a loose one will snap and bang like a flag in a gale.

Establishing Slope Angles to Ensure Efficient Water Runoff

Water weight can collapse a structure. To prevent pooling, you must establish a sail angle slope 20 degrees minimum. For a 5-meter wide sail, this means a height difference of roughly 1.0 to 1.5 meters between the high and low points. This steep pitch ensures that water runs off immediately rather than gathering in a belly in the center.

Check the mounting height carefully. The low point needs to be high enough so people don't walk into it, but low enough to create the slope. If your posts are all the same height, use a long chain on two corners to lower the attachment point relative to the sail, effectively creating the slope artificially.

Monitoring Tensile Strength and Performing Seasonal Maintenance

Even the best installation requires care. Over the first few weeks, the fabric (especially HDPE and coir shade sail materials) will stretch and "relax." This reduces the tensile strength of the system, leading to sag. Seasonal checks are mandatory to keep the system safe and functional.

Inspect the galvanized steel posts for any movement at the base or cracks in the concrete. Check the stainless steel hardware for any signs of tea-staining (surface rust) and clean it if necessary. Lubricating the turnbuckle threads with a specialized grease prevents them from seizing up (galling), ensuring they remain adjustable for years.

Retightening Components as the Fabric Relaxes Over Time

Approximately four weeks after installation, revisit your turnbuckles. You will likely find they are loose enough to be turned by hand. Use a screwdriver or wrench to re-tension them back to the "drum tight" state. This retightening process may need to be repeated annually, usually at the start of spring.

Check the pad eyes on the wall. If you see any cracking in the mortar around the bricks or movement in the plate, remove the sail immediately and reinforce the anchor point. It is better to repair a mount than to have it rip out of the wall during a storm.

Removing the Structure During Extreme Weather Conditions

Standard shade sails are not designed for snow loads or hurricane-force winds. Part of responsible ownership is removing the structure during extreme weather conditions. The use of snap hooks or easily accessible turnbuckles makes this process quick.

Take the sail down during winter if you live in a snowy area to prevent the weight of snow from stretching the fabric or bending the posts. Clean the sail with mild detergent and water, let it dry completely, and store it in a dry place. This simple habit can double the lifespan of your shade sail.
